21-ALEAANS9-C1

9dBi Beamforming Antenna

Frequency: 1710-2170MHz
Antenna Gain: 9dBi
Gain: 50dBi
Max. UL Output Power: 17dBm
Type: SISO
Connector: N Female
Use: Indoor & Outdoor

PDF Datasheet

SKU: 21-ALEAANS9-C1 Category:

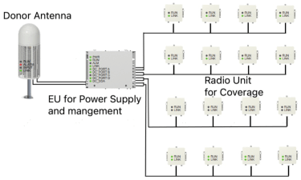

BRIDGE BEAMFORMING ANTENNA is used as a smart donor antenna, which is able to provide 360-degree instant detection of signals in the air and identify and lock onto the optimal signal to serve as the donor signal. It is deployed in scenarios such as multi-operator, multi-carrier wireless repeater systems. It solves the problem that passive antennas cannot automatically determine signal direction and improves repeater performance in mobile scenarios.

The Bridge Beamforming  Antenna integrates an advanced algorithm capable of processing weak signal-level comparison, filtering unused signals, and continuously locking onto the correct signals, even when those signals fluctuate. The product maintains continuous updating and locking functionality at all times.

The Antenna is an ideal solution for offshore vessels, helping overcome challenges related to unstable and unknown BTS signals and signal-direction changes caused by vessel movement. It greatly reduces the need for specialized technical skills on board.

The Antenna is also designed to address donor-signal changes caused by BTS site relocation, carrier refarming, frequency-planning updates, and similar network adjustments. It significantly reduces complaints and labor costs associated with wireless-repeater surveying, activation, and maintenance after base-station changes.
